Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel

Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel | Buffer Tanks | DHW Cylinders & Buffers |
Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel | Buffer Tanks | DHW Cylinders & Buffers |
Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel | Buffer Tanks | DHW Cylinders & Buffers |
Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel | Buffer Tanks | DHW Cylinders & Buffers |
Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel

Saving energy and money is achieved using buffer vessels of the Sunsystem P series in the central heating system.

  • Stock: Na zalogi
  • Znamka: Sunsystem
  • SKU: 01.409.005
€ 1,549.10
incl. VAT
Brez DDV: € 1,290.92

     Prihranite  5%   z bančnim nakazilom.

PREDVIDEN ČAS DOSTAVE
18.Jul.2025
DHL Schenker
Glejte Politiko Pošiljanja

Brezplačno vračilo
​60 dniPodrobnosti si oglejte

Sprejemamo plačila
    Podrobnosti si oglejte

Accumulates the heat generated by solid fuel boiler, solar heater, heat pump or any other source; recommended for every central heating system.
Ensures the optimum operation and efficiency of a solid fuel boiler, permitting the functioning at nominal power output, even when the heating of the premisses does not require all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.


Modifications and sizes, in liters:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000


Product  features:

  • Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
  • Multi-position mounting of temperature sensor
  • Primer coated on the outside of the tank
  • All threads are internal
  • inlet / Outlet connections - at 180 degrees
  • Easy installation
  • Optional kit for electric heating with nominal power  3kW, 4.5kW, 6kW or 7.5kW

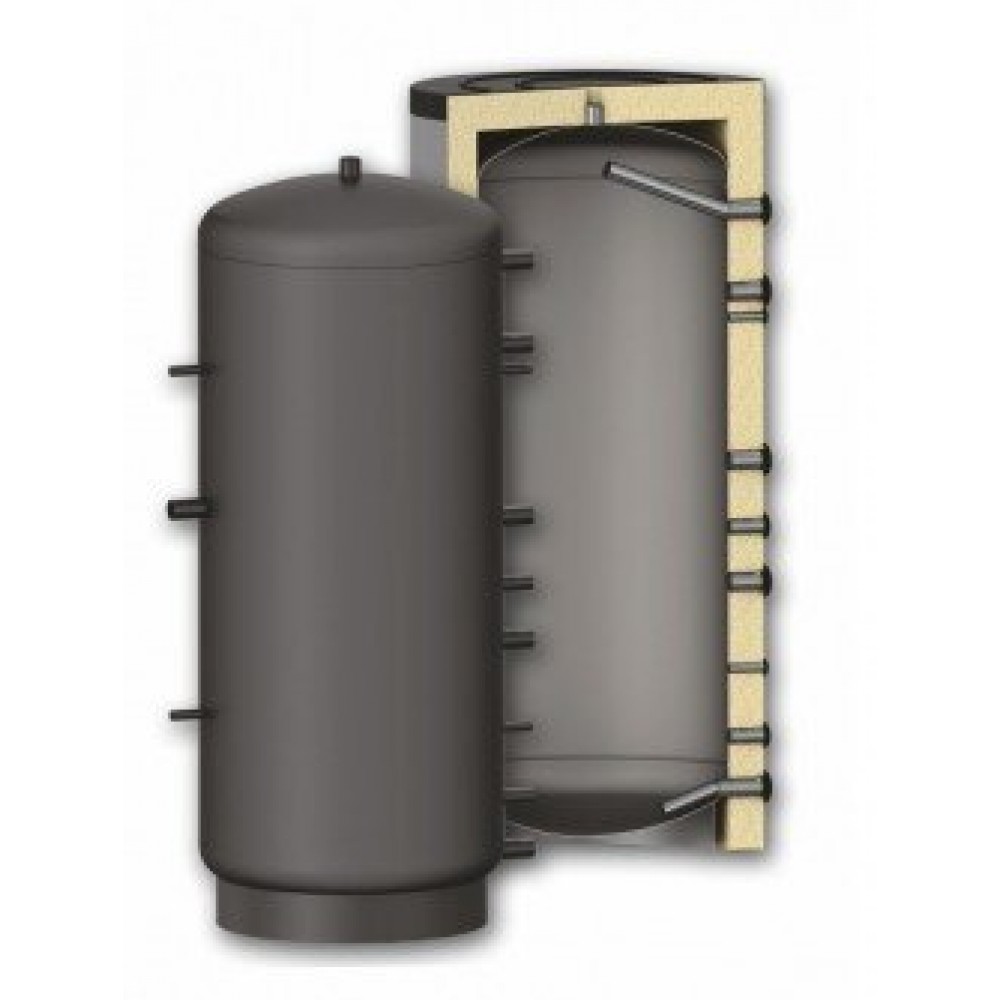

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel









Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:


Class E - capacity from 300 to 500 Liters;
Class Е - capacity from 800 to 1000 Liters;







Characteristics
Teža (kg) 274.0000
Država izdelave Bulgaria
Višina (mm) 2220
Garancija 2 Years
Termometer Optional
Prostornina/ Vsebina vode (L) 1500
Montaža Free standing
Zmogljivost izmenjevalnika toplote No heat exchanger
Višina brez izolacije (mm) 2170
Premer (mm) 1200
Premer brez izolacije (mm) 1000
Minimalna navpična razdalja (mm) 2220
Teža izolacije (kg) 23.2

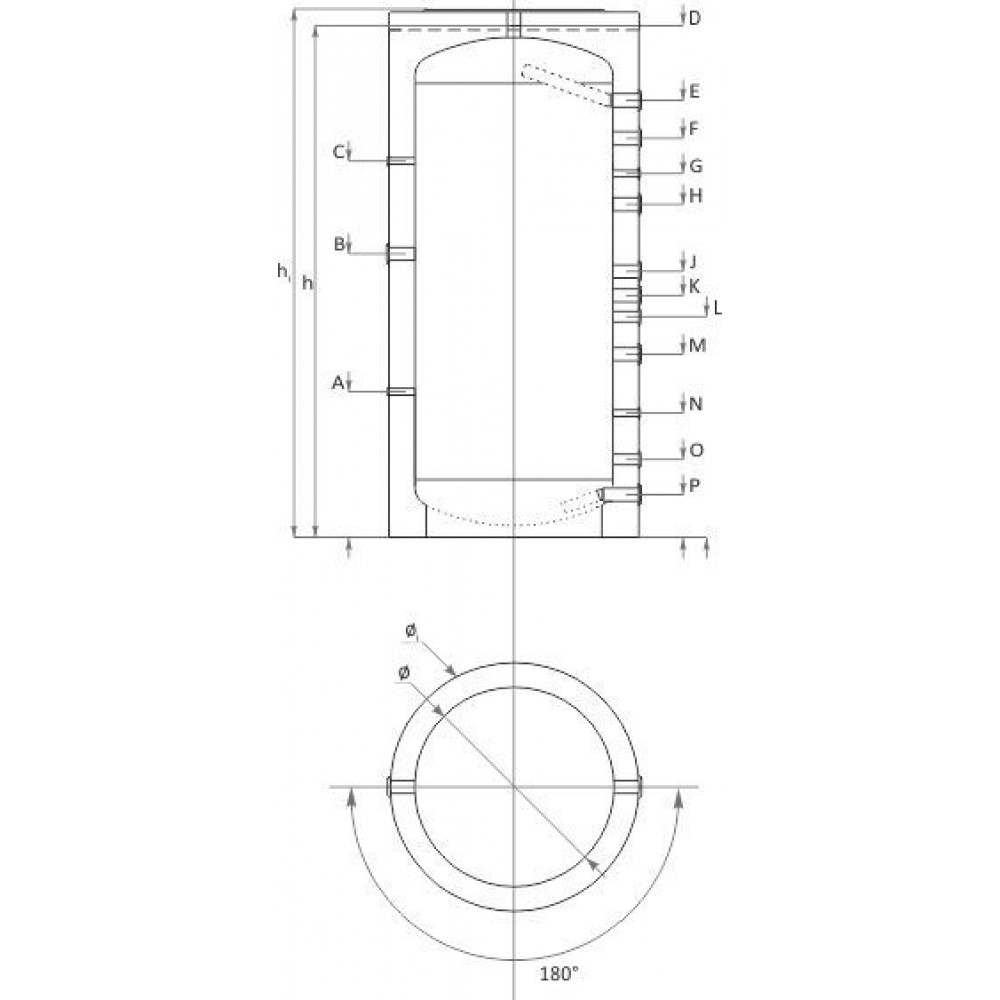

Električni grelni element B (mm) G 1 1/2'' / 1130
Ovratnica za tipalo C (mm) G 1/2'' / 1500
Odzračevalna ovratnica D (mm) G 1 1/2'' / 2170
Toplotni nosilec kotla E (mm) G 1 1/2'' / 1808
Ovratnica za tipalo G (mm) G 1/2'' / 1525
Toplotni nosilec kotla H (mm) G 1 1/2'' / 1305
Toplotni nosilec kotla J (mm) G 1 1/2'' / 1085
Dovodni priključek toplotnega nosilca L (mm) G 1'' / 895
Izhodni priključek toplotnega nosilca kotla M (mm) G 1 1/2'' / 765
Ovratnica za tipalo N (mm) G 1/2'' / 520
Izhodni priključek toplotnega nosilca O (mm) G 1'' / 375
Največja delovna temperatura tuljave (°C) 95
Dovodni priključek toplotnega nosilca F (mm) G 1 1/2'' / 1635
Izhodni priključek toplotnega nosilca kotla P (mm) G 1 1/2'' / 235
Delovni tlak hranilnika toplote (bar) 3
Dodatna ovratnica K (mm) G 1/2'' / 975
