Buffer Tank Sunsystem, Model P 1000, Capacity 1000L Vessel

Saving energy and money is achieved using buffer vessels of the Sunsystem P series in the central heating system.

  • Stock: Na zalogi
  • Znamka: Sunsystem
  • SKU: 01.409.004
€ 1,590.00
incl. VAT
Brez DDV: € 1,325.00

     Prihranite  5%   z bančnim nakazilom.

PREDVIDEN ČAS DOSTAVE
18.Jul.2025
DHL Schenker
Glejte Politiko Pošiljanja

Brezplačno vračilo
​60 dniPodrobnosti si oglejte

Sprejemamo plačila
    Podrobnosti si oglejte

Accumulates the heat generated by solid fuel boiler, solar heater, heat pump or any other source; recommended for every central heating system.
Ensures the optimum operation and efficiency of a solid fuel boiler, permitting the functioning at nominal power output, even when the heating of the premisses does not require all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.


Modifications and sizes, in liters:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000



Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:


Class C - capacity from 300 to 5000 Liters;

Product  features:

  • Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
  • Multi-position mounting of temperature sensor
  • Primer coated on the outside of the tank
  • All threads are internal
  • inlet / Outlet connections - at 180 degrees
  • Easy installation
  • Optional kit for electric heating with nominal power  3kW, 4.5kW, 6kW or 7.5kW

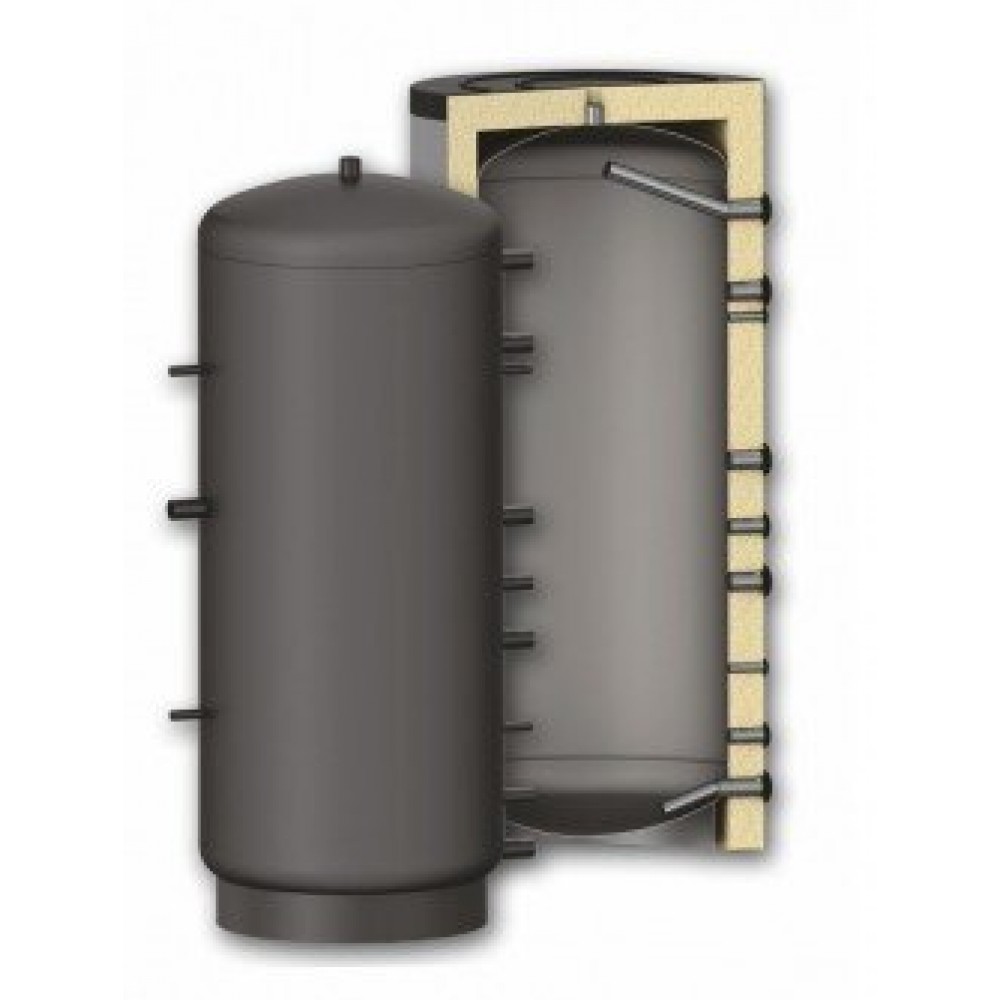

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel


Characteristics
Teža (kg) 152.0000
Država izdelave Bulgaria
Višina (mm) 2090
Garancija 2 Years
Certifikat CE
Termometer Optional
Razred energijske učinkovitosti C
Prostornina/ Vsebina vode (L) 1000
Montaža Free standing
Zmogljivost izmenjevalnika toplote No heat exchanger
Višina brez izolacije (mm) 2040
Premer (mm) 990
Premer brez izolacije (mm) 790
Minimalna navpična razdalja (mm) 2075
Teža izolacije (kg) 18
Maksimalna delovna temperatura akumulacijskega rezervoarja (°C) 95
Manšeta za tipalo A (mm) G 1/2'' / 580
Električni grelni element B (mm) G 1 1/2'' / 1130
Ovratnica za tipalo C (mm) G 1/2'' / 1500
Odzračevalna ovratnica D (mm) G 1 1/2'' / 2040
Toplotni nosilec kotla E (mm) G 1 1/2'' / 1742
Ovratnica za tipalo G (mm) G 1 1/2'' / 1450
Toplotni nosilec kotla J (mm) G 1 1/2'' / 1060
Dovodni priključek toplotnega nosilca L (mm) G 1'' / 880
Izhodni priključek toplotnega nosilca kotla M (mm) G 1 1/2'' / 730
Ovratnica za tipalo N (mm) G 1/2'' / 495
Izhodni priključek toplotnega nosilca O (mm) G 1'' / 310
Dovodni priključek toplotnega nosilca F (mm) G 1 1/2'' / 1520
Izhodni priključek toplotnega nosilca kotla P (mm) G 1 1/2'' / 150
Delovni tlak hranilnika toplote (bar) 3
