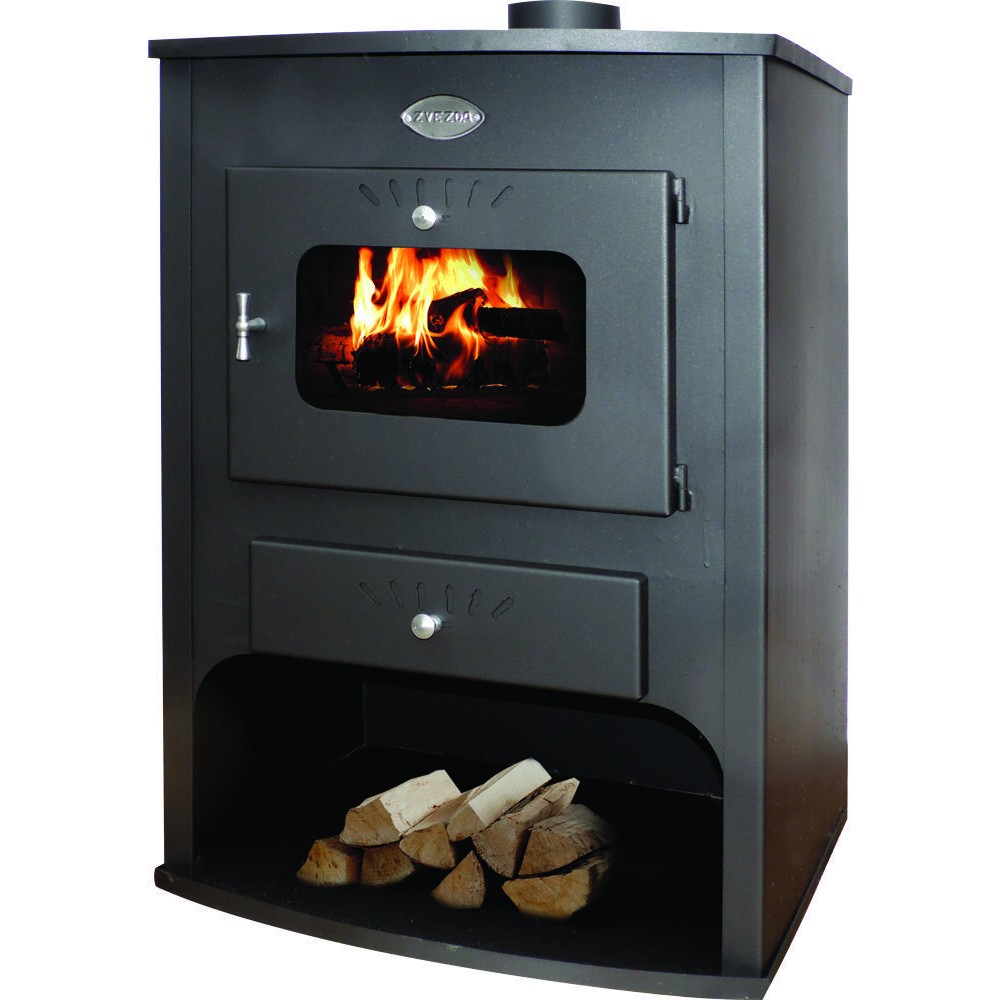

Multi Fuel Stove With Back Boiler Zvezda Maxi VR 16, 24.1kW
Wood burning boiler stove with wood storage and 6mm thick steel top.



- Stock: Na zalogi
- Znamka: Zvezda
- SKU: 08.435.301
Prihranite 5% z bančnim nakazilom.


Brezplačno vračilo
60 dniPodrobnosti si oglejte
Sprejemamo plačila
Podrobnosti si oglejte
Morda boste potrebovali tudi
Color : graphite black
- Built-in hot water boiler for a central heating system.
- The combustion chamber is equipped with heat resistant ceramic glass.
- Cast iron grate.
- Front damper for controlling the air supply
- Smoke damper for adjusting the flame intensity
- Secondary air flap that increases the combustion temperature, efficiency and prevents fumigation of the glass.
- Wooden door handles.
- Compartment to store and dry moist wood.
WARNING!
- Not to be fired when not connected to radiators / fan convector heaters. Burning wood in the fireplace without water in the boiler will cause it to crack and subsequent loss of the guaranty.
Achieving the desired heat output depends on:
- the selected fuel with the necessary caloricity and humidity
- its subsequent kindling and refueling
- the regulation of the primary and the secondary air
- the regulation of the draught
- the organizing of effective air heat exchange, etc.
Recommendations
- We recommend the installation to be done in an open type system. All elements of the installation must be protected from freezing. In installation with forced ciculation we recommend the pump to be backed-up by a UPS.
- In case of presence of copper in any part of the plumbing installation the fireplace must be protected from electrolysis by installing a magnesium anode or other protective system.
Characteristics | |
Teža (kg) | 128.0000 |
Država izdelave | Bulgaria |
Globina (mm) | 610 |
Širina (mm) | 600 |
Višina (mm) | 940 |
Garancija | 2 Years |
Delovni tlak (bar) | 1 |
Certifikat | CE |
Približna površina ogrevanja (m²) | 160 |
Dimnik (mm) | 130 |
Lokacija izpuha | Top side |
Nazivna toplotna moč (kW) | 24.1 |
Približna kapaciteta ogrevanja (m³) | 430 |
Nazivna moč za ogrevanje vode (kW) | 9 |
Material izdelave | Steel |
Moč grelca za prostor [kW] | 15.1 |
Hladna voda vhod | 1" |
Topla voda izhod | 1" |
Zaščita pred pregrevanjem | No |
Vrsta ogrevanja | Hydro - Radiator |
Značilnosti | Niche |
Obloga | None |
Namestitev | Center |
Priporočeni tip sistema | Open |
Loputa dimnika | Yes |
